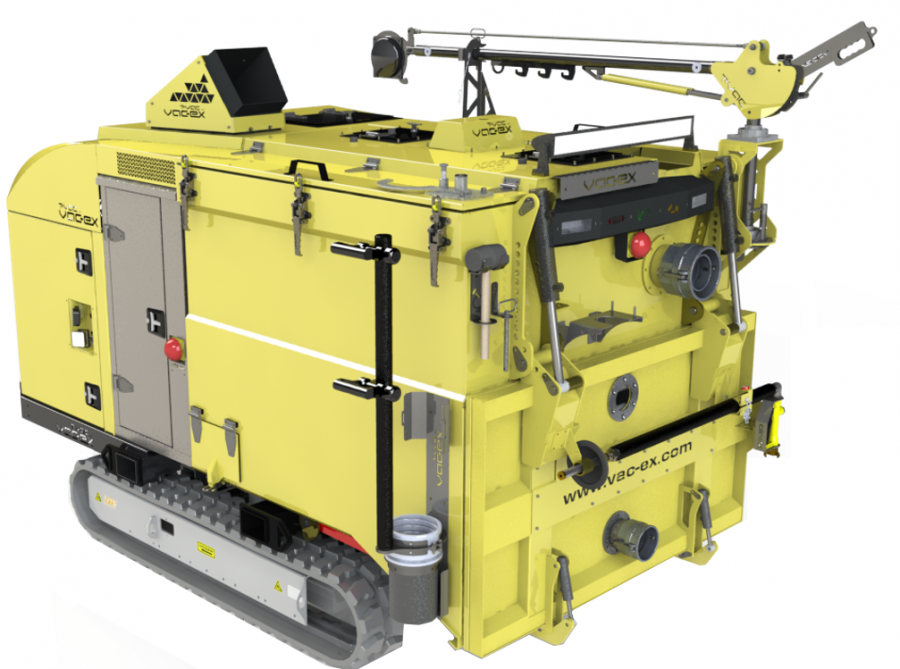

T-VAC 2 Tracked Vacuum Excavator

‘T-VAC 2' tracked vacuum air excavator is capable of excavating most types of ground (wet or dry).

T-VAC 2

The new range T-VAC 2 delivers more power with a host of additional features. Capable of excavating most types of ground (wet or dry) by utilising optional high-pressure water and/or compressed air.

Its small footprint allows access to an array of sites where access is space limited, such as tight streets and along busy roads. Ideal for ground excavation in utility, construction and hire industries: pipelaying, rail works, cable laying, gas, road works, tunnelling, arborculture, military, airports, municipal, building, environmental, hydro-demolition and petro-chemical.

Specifications

Hydraulic PTO (optional equipment)25 or 50 l/min @ 2465 psi / 150 bar
Hose inlet150mm / 6"
Skip capacity1.0 m3

Features

  • Weight 2750 kg
  • Max tipping 2580mm
  • Height – 2250mm
  • Width – 1775mm
  • Length – 3850mm
  • Vacuum: Twin turbine
  • Optional: Compressor 145 psi / 10 bar
  • Optional: HP Water: 2000 psi / 137 bar
  • Optional: Generator 5 kVA
  • Fuel tank capacity: 54 Litres
