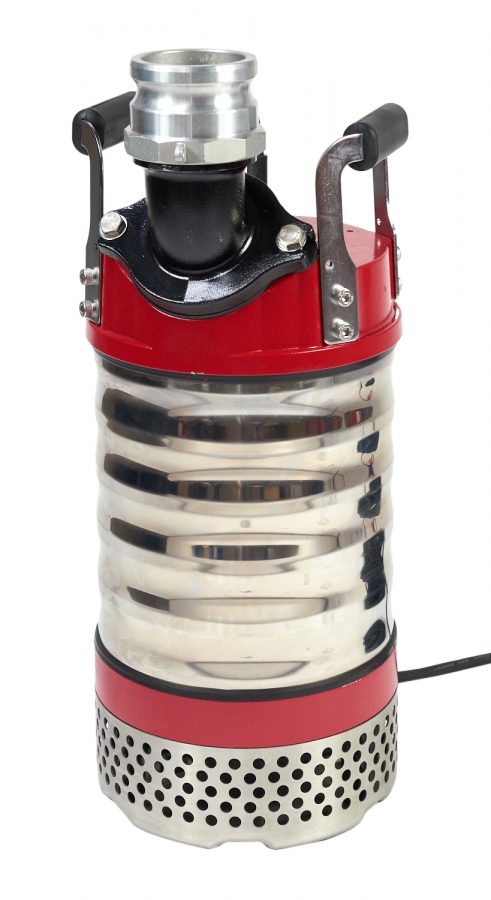

3″ Electric Submersible Pump (P315W)

3"/75mm SPT electric submersible pump - 690 litres/minute with a total head of 17M

P315W

SPT range of professional, lightweight, portable submersible pumps are even more adaptable and lighter. SPT submersible drainage pumps are robust, long-running, reliable, and wear-resistant fulfilling their pumping tasks even under extreme conditions. All SPT series components are optimally designed for use under the most demanding conditions. This guarantees safe and faultless pump operation.

Specifications

Diameter3" / 75mm
Litres / minute690
Total head17M
Weight28 kg

Features

  • Outlet direction is simple to adjust thanks to new design
  • Easy to replace wear parts, no special tools needed (just 13 + 19mm spanners)
  • Reinforcing casing protects against external impacts
  • Thermal Protection
  • Semi-open Impeller
  • Motor Type: Dry running
  • Rated Motor Output: 2Hp / 1500 watts
  • 240V / 50H / Single Phase
