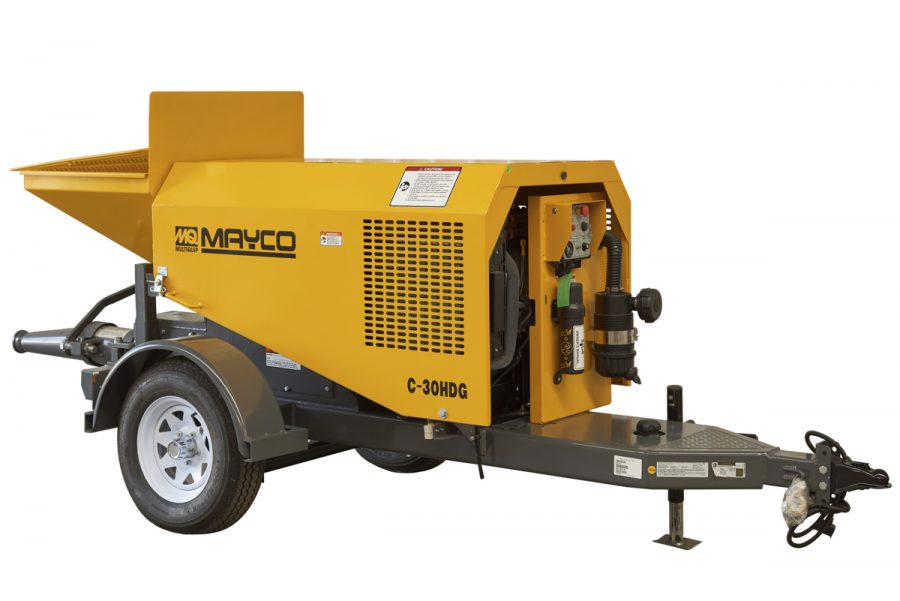

Mayco Small Line Concrete Pump
The Multiquip C30HD Mayco small line concrete pump is ideal for shotcrete applications of harsh, stiff and low plump mixes.
The C30HD Mayco small line concrete pump from Multiquip is ideal for shotcrete applications of harsh, stiff and low plump mixes. Ideal for swimming pools, ditch linings, soil stabilisation, walls and more.
Specifications
| Weight | 1320 kg |
| Pumping rate | 19M3 per hour (guide only) |
| Engine | 50 HP Zenith Z416 diesel engine |
| Dimensions L x W x H: | 366cm x 149cm x 164cm |
Features
- Hopper Capacity: 0.17 M3
- Maximum Aggregate Size: 12mm
- Vertical Pumping Height: 46M
- Horizontal Pumping Distance: 152M
- Concrete Piston Face Pressure: 500 psi
- Material Hose: 5cm, 6.4cm
- Heavy-duty centrifugal clutch for longer life
- Central lubrication system
- Hardwired 38M cable or an optional wireless remote control
- All steel engine cover
- Three-speed volume control
- E-Z open TM Manifold – hinged for quick access to seats, cylinders and piston cups
- Longer frame with fuel cell inside
- Full-featured highway light package
- 3″ x 2″ Reducer with heavy-duty raised ends
- Two 3″ adjustable snap couplings
- Hour meter
- Temperature warning light
- Battery warning light
