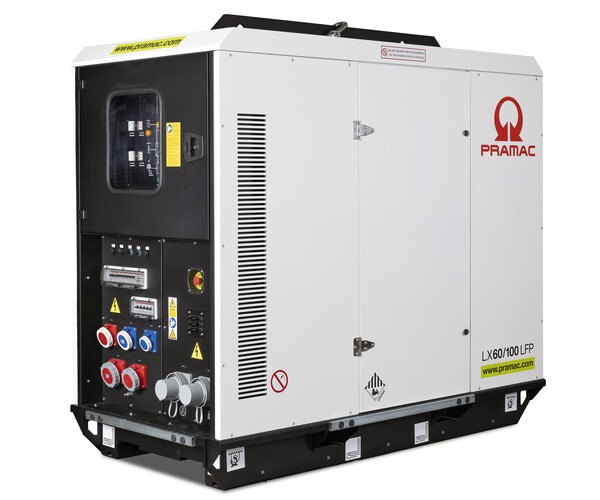

60 kVA Battery Energy Storage System
60 kVA single or 3 phase Battery Energy Storage System (BESS) ideally suited to deliver reliable mains power cost-effectively with environmental sensitivity.
Power can be derived from solar PV, connection to an external grid supply, or from a diesel generator or wind turbine. Energy is automatically managed from any or all of these energy sources to ensure the most efficient, lowest maintenance and best environmental impact is achieved.
Energy generated from multiple sources i.e. generator, solar, wind or the grid is stored within the unit is converted electronically into mains power when deployed on-site at either construction, commercial or industrial premises. Remote monitoring ensures real-time monitoring and maintance can be effected from any location in the world.
Specifications
| Output Power Continuous | 60 kVA |
| Output Power -5s peak | 120 kW |
Features
- 3 Phase
- 400 / 230 volts
- Frequency 50 Hz
- Li-Ion NMC
- Battery Rated Voltage 55.5
- 63A CEE 3P+N+T
- 125A CEE 3P+N+T
- Individual RCD 1 phase sockets type B 30mA x 1
- Common RCD for 3 phase sockets x 1
- Protection Rating 34 IP
- Weight 2024 kg
- Deep cycle automotive NMC Li-ion battery
- Advanced EMS with touch screen control
- GSM Remote monitoring
- Full system DC isolator with pre-charge
- Auto Full bypass system
- Single to three phase conversion
