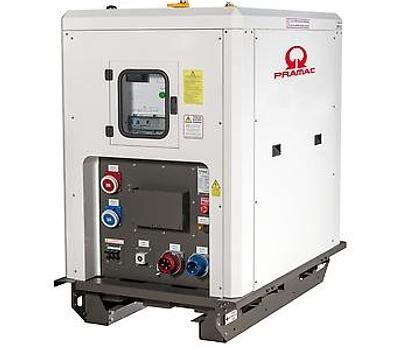

30 kVA Battery Energy Storage System
30 kVA three phase, lithium Battery Energy Storage System (BESS) ideally suited to deliver reliable mains, off-grid power cost-effectively with environmental sensitivity.
Power can be derived from solar PV, connection to an external grid supply, or from a diesel generator or wind turbine. Energy is automatically managed from any or all of these energy sources to ensure the most efficient, lowest maintenance and best environmental impact is achieved.
Energy stored within the unit is converted electronically into mains power. Remote monitoring ensures real-time monitoring and maintenance can be effected from any location in the world.
Specifications
| Output Power Continuous | 30 kVA |
| Output Power -5s peak | 60 kW |
Features
- Three Phase
- 230 volts
- Frequency 50 Hz
- Li-Ion NMC
- Nominal Capacity 75 kWh
- Max. input (1-phase 230V) 63 A
- System pass-through capacity 63 A
- Protection Rating 34 IP
- Weight 1150 kg
- Deep cycle automotive NMC Li-ion battery
- Advanced EMS with touch screen control
- GSM Remote monitoring
- Auto Full bypass system
- Single to three phase conversion
