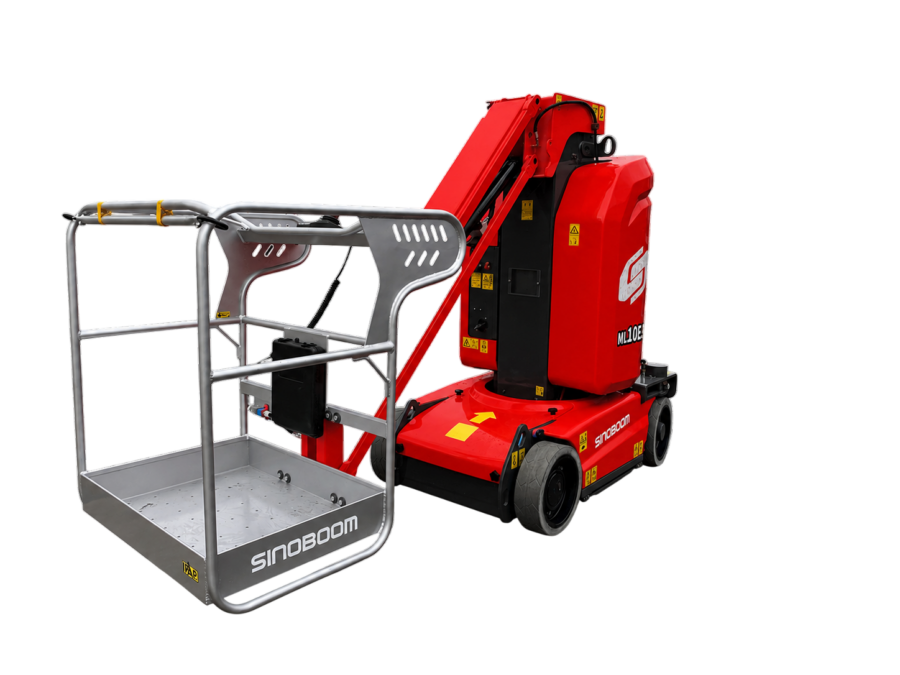

Sinoboom 10.3M 2,678kg Electric Vertical Mast Lift
Maximum working height of 10.3M and can fit through a doorway
The Vertical Mast Lift, or one-man lifter, from Sinoboom offers unparalleled stability, ease of use, and safety, making them the perfect choice for various indoor and outdoor applications. With unmatched stability at between 5.8M – 10.3M, the working environment is safe and secure. They feature intuitive controls and are easy to manoeuvre as well as straightforward to use.
With their robust construction, they are durable and reliable, ideal for maintenance, installations and inspections in warehouses, retail stores and manufacturing facilities.
Contact us today to request a quote, or schedule a demo.
Specifications
| Weight | 2678kg |
| Working Height | 10.3M |
| Platform Capacity | 200kg |
| Power | 24 V, 480 Ah |
| Horizontal Reach max | 3.3 M |
Features
- Unique movable pothole protection system
- Unique disassembly system with integrated boom
- Compact enough to pass through a standard doorway, zero tail swing and zero turning radius
- Designed to be user-friendly and for easy maintenance
- Max Working Height 10.3 m
- Max Platform Height 8.3 m
- Max Horizontal Reach 3.3M
- Length-Stowed 2.97 m
- Width-Stowed 0.99 m
- Height-Stowed 1.99 m
- Wheelbase 1.2 m
- Ground Clearance (Pothole Guard Stowed) 0.06m
- Ground Clearance (Pothole Guard Deployed) 0.02m
- Platform Size (L×W×H) 0.99 m×0.7 m×1.1 m
- Capacity 200kg
- Max Platform Occupants (Indoor/Outdoor) 2 Persons / 1 Persons
- Drive Speed (Stowed) 0～4 km/h
- Drive Speed (Raised) 0～0.6 km/h
- Lift time (unloaded) 32～36 s
- Lower time (unloaded) 32～37 s
- Gradeability 25%
- Max Allowable Inclination (front-to-back / side-to-side) 3° / 3°
- Turning Radius (Inside/Outside) 0/1.55 m
- Tyre Spec/Type 406 x 127/solid
- Drive × Steer 2WD×2WS
- Hydraulic Tank Capacity 13L
- Power Source 24V DC / 4 kW
- Batteries 24 V 240 Ah
- System Voltage 12V DC
- Charger (input/output) 100～240 V AC/30 A
- 2 WD × 2 WS
- Proportional control
- Tilt protection system
- Flashing beacon
- Non-marking tyres
- Electrophoretic painting
- Forklift pockets and lifting points
- White noise alarm
- Secondary guarding system
- Fault diagnosis system
- Zero inside turning radius
- Drivable at full height
- Automatic pothole protection
- Manual storage box
- Emergency lowering system
- Overload sensing system
Options & Accessories
- RCBO
- AC power to platform
- Telematics-ready connector
- Battery isolator
Each elevated work platform comes with an impressive factory warranty and a comprehensive After Sales Support programme supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
