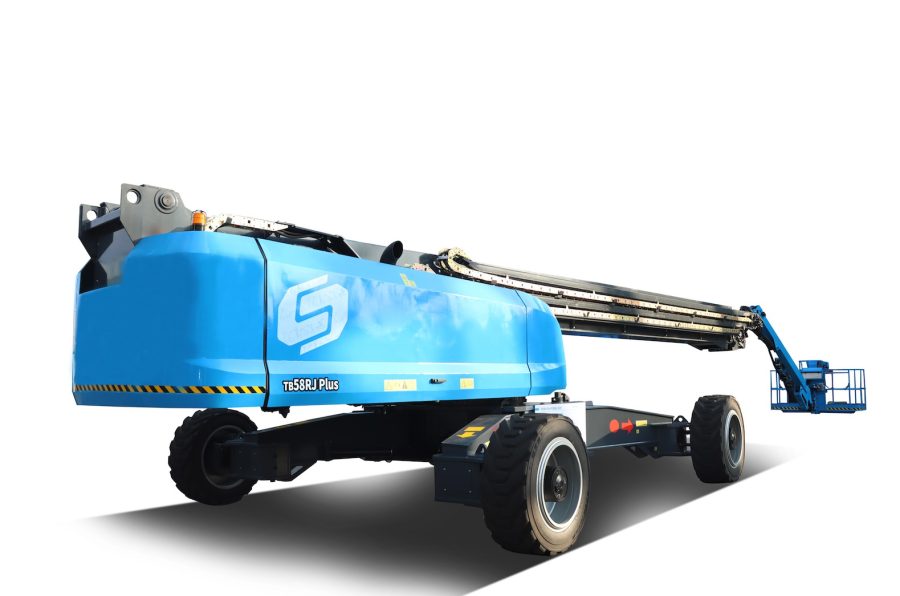

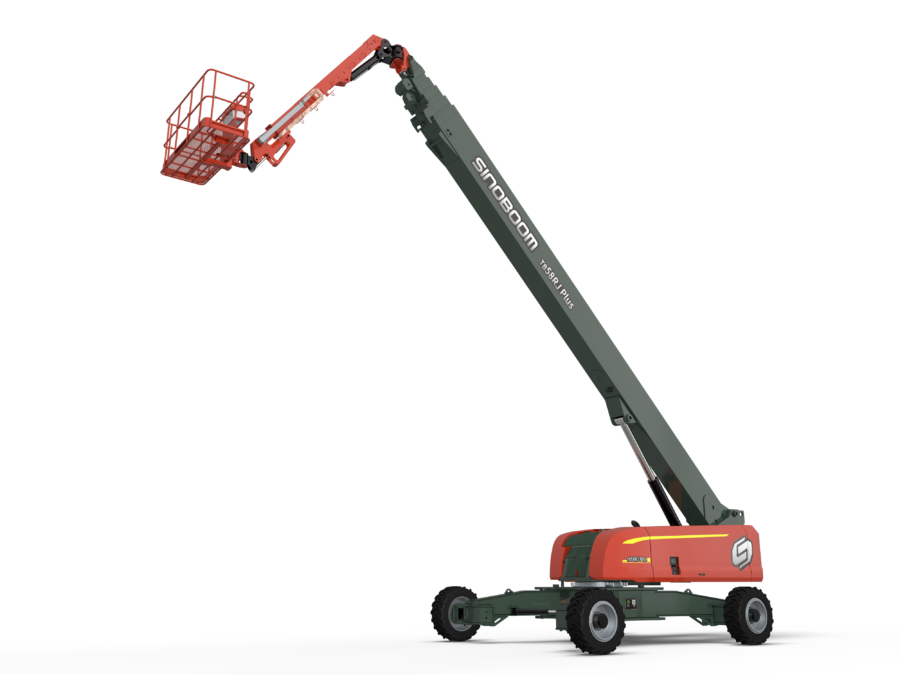

Sinoboom 59.9M 27,600kg Diesel Rough Terrain Telescopic Boom Lift
With a maximum working height of 59.9M the TB58RJ PLUS diesel-powered Sinoboom telescopic boom lift has a capacity of up to 454kg (restricted) and a machine weight of 27600kg
Access to high-rise structures and elevated work areas is secured with the 59.9M working height capability of the TB58RJ PLUS. The telecopic boom with jib for enhanced maeouvrability and precise positioning is enhanced with the ability to reach horizontally at 20.1M at 454kg / 24.4M at 300kg allowing for high load capacity for multiple workers and equipment to be lifted safely.
4WD capability with 45% gradeability together with advanced safety features ensures operator safety. Built with longevity and reliability in various conditions firmly in mind, high-quality materials and components have been used in the build.
Perfect for utilities, shipyards and ports, industrial maintenance and repairs, construction sites, telecommunications, oil and gags industry and event management.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.
Specifications
| Weight | 27600kg |
| Working Height | 59.9M |
| Platform Capacity (Restricted / Unrestricted) | 454 kg / 300kg |
| Power | Yuchai YCF36100-T480 74 kW |
| Horizontal Reach max (Restricted / Unrestricted) | 20.01M / 24.4M |
Features
- The machine equips safety Rexroth controller with dual backup CPU and compliant with ISO 13849 for additional safety
- Extra capacity of 454kg at restricted height and reach
- Industry leading 7” screen displays faults and status information for easy reference, remote guidance and live machine and maintenance information.
- 3 full-proportional handles beneficial for gradual control of boom lifting, telescoping, turntable rotation and driving speed
- Max Working Height 59.9 m
- Max Platform Height 57.9 m
- Max Horizontal Reach (restricted / unrestricted) 20.1 m / 24.4 m
- Length-Stowed 20.07 m
- Width-Stowed 2.49 m
- Height-Stowed 3.1 m
- Wheelbase 5.2 m
- Ground Clearance 0.33m
- Platform Size (L×W×H) 2.44 m×0.91 m×1.1 m
- Capacity (Restricted / Unrestricted) 480 kg / 300kg
- Max Platform Occupants 2 Persons
- Drive Speed (Stowed) 0～4.5 km/h
- Drive Speed (Raised) 0～0.48 km/h
- Gradeability 45%
- Turntable Rotation 360o non-continuous
- Platform Rotation 160o
- Jib Rotation 170o
- Tilt Rating 5°
- Turning Radius (Inside/Outside) 7.1 m/9.52 m
- Turntable tail swing 3.58 m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 445/50D710PR/foam filled
- Drive × Steer 4WD×4WS
- Hydraulic Tank Capacity 405L
- Fuel Tank Capacity 200L
- Yuchai YCF33600-T480 74 kW
- System Voltage 12V DC
- 4 WD × 4 WS
- Electric Platform Levelling
- Proportional control with 3 joysticks
- Tilt protection system
- Flashing beacon
- 7-in display screen
- Automotive-grade sleeves for all pipes
- Max tilt rating to 5o
- White noise alarm
- Telematics-ready connector
- Battery isolator
- 2.44 m platform with swinging gate
- Weighing system
- Half mesh (for platform swinging gate)
- 160 degree platform rotation
- Secondary guarding device
- 170 jib rotation
- Footswitch
- Weighing system
Options & Accessories
- AC power to platform
- Platform work light
