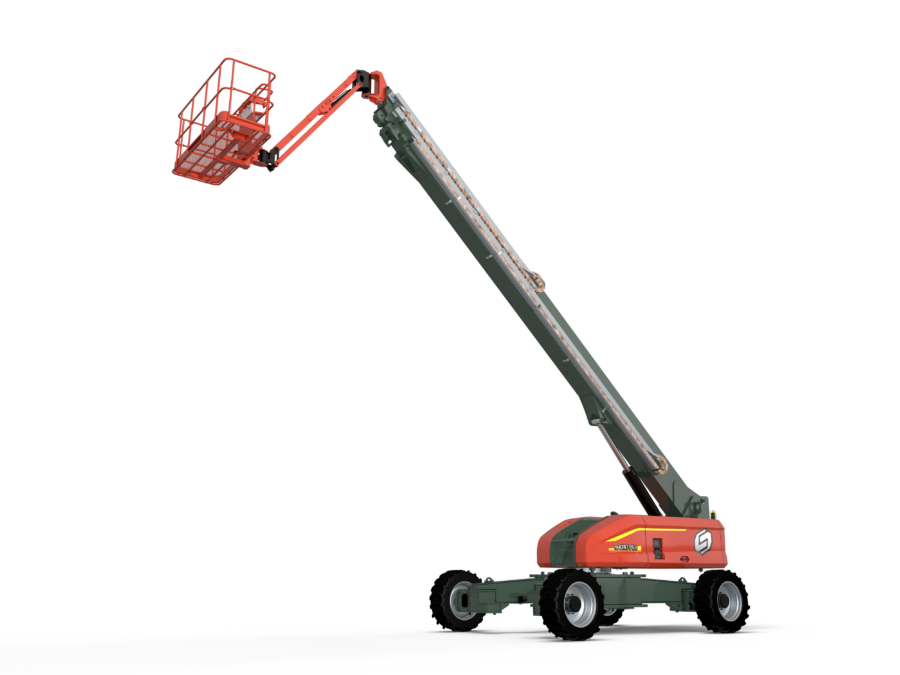

Sinoboom 43.6M 22,400kg Diesel Rough Terrain Telescopic Boom Lift

With a maximum working height of 43.6M and a horizontal reach of up to 23.8M this diesel-powered Sinoboom, telescopic boom lift has a extra capacity of up to 450kg (restricted) and a machine weight of 22400kg

Sinoboom
TB42RJ

With an impressive working height of 43.6M and maximum reach of 21.6M at 480kg / 23.8M at 250kg this EWP provides versatility in positioning. The TB42RJ Features an oscilating function and combined with its 4WD functionality makes this unit perfect for uneven ground and work efficiency. The powerful diesel engine delivers reliable performance in demanding environments and ensures prolonged operational periods and efficient fuel consumption.

Advanced safety systems, including automatic levelling, load-sensing technology and a robust chassis add to exceptional stability on various terrains. Built with high-quality materials and components, it is designed for minimal maintenance requirements and high-quality materials and components.

Ideal for high-rise building construction, steel erection, infrastructure projects, industrial maintenance, telecommunications and utilities, warehousing and logistics, stadiums and arenas, aviation and marine areas.

Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.

Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.

Enquire about this product ›
Complete with After Sales Support powered by YR Connect

Specifications

Weight22400kg
Working Height43.6M
Platform Capacity (Restricted / Unrestricted) 480 kg / 250kg
PowerCummins QSF2.8t3TC72 54 kW / Deutz TD2.9L4 55.4 kW / Yuchai YCF3075-T480 55.8 kW
Horizontal Reach max (Restricted / Unrestricted)21.6M / 23.8M

Features

  • The oscillating function, combined with the power of 4WD makes this machine perfect for uneven ground and greatly improves work efficiency
  • Extra capacity of 480kg at restricted height and reach
  • Industry leading 7” screen displays faults and status information for easy reference, remote guidance and live machine and maintenance information.
  • 3 full-proportional joysticks beneficial for gradual control of boom lifting, telescoping, turntable rotation and driving speed
  • Max Working Height 43.6 m
  • Max Platform Height 41.6 m
  • Max Horizontal Reach (restricted / unrestricted) 21.6 m / 23.8 m
  • Length-Stowed 14.96 m
  • Width-Stowed 2.49 m
  • Height-Stowed 3.15 m
  • Wheelbase 3.81 m
  • Ground Clearance 0.65m
  • Platform Size (L×W×H) 2.44 m×0.91 m×1.1 m
  • Capacity (Restricted / Unrestricted) 480 kg / 250kg
  • Max Platform Occupants 2 Persons / 2 Persons (and tools)
  • Drive Speed (Stowed) 0～4.4 km/h
  • Drive Speed (Raised) 0～1 km/h
  • Gradeability 40%
  • Turntable Rotation 360o continuous
  • Jib Rotation 235o (left 160o / right 75o)
  • Platform Rotation 180o
  • Tilt Rating 5°
  • Turning Radius (Inside/Outside) 4.37 m/6.81 m
  • Turntable tail swing 1.68 m
  • Max Allowable Side Force 400 N
  • Max allowable wind speed 12.5 m/s
  • Tire Spec/Type 445/50D710/foam filled
  • Drive × Steer 4WD×2WS
  • Hydraulic Tank Capacity 280L
  • Fuel Tank Capacity 200L
  • Cummins QSF2.8t3TC72 54 kW / Deutz TD2.9 L4 55.4 kW / Yuchai YCF3075-T480 55.8 kW
  • System Voltage 12V DC
  • 4 WD × 2 WS
  • Hydraulic Platform Levelling
  • Proportional control with 3 joysticks
  • Tilt protection system
  • Flashing beacon
  • 7-in display screen
  • Automotive-grade sleeves for all pipes
  • Max tilt rating to 5o
  • White noise alarm
  • Telematics-ready connector
  • Battery isolator
  • Active oscillating function
  • 2.44 m platform with swinging gate
  • Weighing system
  • Half mesh (for platform swinging gate)
  • Manual storage box
  • 180 degree platform rotation
  • Secondary guarding device

Options & Accessories

  • AC power to platform
  • Platform work light
  • 1.83 m / 2.44 work platform with swinging gate
  • Glazier kit (for platform with swinging gate)
