Sinoboom 22M 11,900kg Diesel Rough Terrain Telescopic Boom Lift
With a maximum working height of 22M this diesel-powered Sinoboom telescopic boom lift has extra capacity basket weight of up to 454kg (restricted) and machine weight of 11900kg

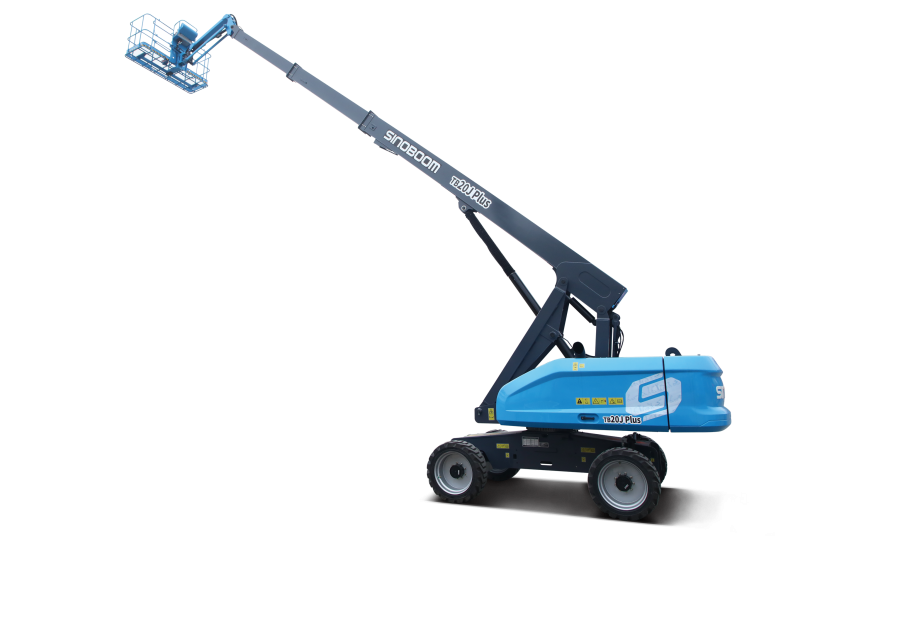

Reach elevated work areas safely and efficiently with the TB20J PLUS diesel-powered Sinoboom telescopic boom lift. With a maximum working height of 22M and maximum outreach of 14.6M at 454kg / 16.1M at 300kg operators can access hard-to-reach locations without repositioning the machine frequently.
The powerful diesel engine ensures reliable perfomance when working on demanding job sites and tough working conditions. The 360 degree turntable provides continuous rotation, allowing for enhanced manoeuvrability and precise positioning of the platform. The gradeability of 45% gives flexibility when working on sloped and tough terrain.
Ideal for construction site tasks such as steel erection, cladding installation and suitable for maintenance and inspection tasks on tall structures. Perfect for working in telecommunications equipment and utilities as well as industrial facilities, shipyards and ports, warehousing and logistics, bridge and tunnel work, agriculture and wind energy.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.
Specifications
| Weight | 11900kg |
| Working Height | 22M |
| Platform Capacity (Restricted / Unrestricted) | 454 kg / 300kg |
| Power | Cummins QSF2.8t3NA60 43 kW |
| Horizontal Reach max (Restricted / Unrestricted) | 14.6M / 16.1M |
Features
- Extra capacity of 454kg at restricted height and reach
- Both the active and inactive states have an oscillating function, allowing work on inclined and uneven ground
- 3 full-proportional handles beneficial for gradual control of boom lifting, telescoping, turntable rotation and driving speed
- Max Working Height 22 m
- Max Platform Height 20 m
- Max Horizontal Reach (restricted / unrestricted) 14.6 m / 16.1 m
- Length-Stowed 9.99 m
- Width-Stowed 2.49 m
- Height-Stowed 2.79 m
- Wheelbase 2.49 m
- Ground Clearance 0.46m
- Platform Size (L×W×H) 2.44 m×0.91 m×1.1 m
- Capacity (Restricted / Unrestricted) 454 kg / 300kg
- Max Platform Occupants 3 Persons / 2 Persons
- Drive Speed (Stowed) 0～4.8 km/h
- Drive Speed (Raised) 0～1.1 km/h
- Gradeability 45%
- Turntable Rotation 360o continuous
- Platform Rotation 160o
- Tilt Rating 5°
- Turning Radius (Inside/Outside) 2.4 m/5.5 m
- Turntable tail swing 1.45 m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 355/55D625/foam filled
- Drive × Steer 4WD×2WS
- Hydraulic Tank Capacity 180L
- Cummins QSF2.8t3NA60 43 kW
- Fuel Tank Capacity 140L
- System Voltage 12V DC
- 4 WD × 2 WS
- Hydraulic Platform Levelling
- Proportional control with 3 joysticks
- Tilt protection system
- Flashing beacon
- Non-marking tyres
- 7-in display screen
- Automotive-grade sleeves for all pipes
- Max tilt rating to 5o
- White noise alarm
- Secondary guarding device
- Telematics-ready connector
- Battery isolator
- Fault diagnosis system
- Active oscillating function
- 2.44 m platform with swinging gate
- Weighing system
- Half mesh (for platform swinging gate)
- Manual storage box
- 160 degree platform rotation
- Emergency stop system
Options & Accessories
- AC power to platform
- Platform work light
- 1.83 m work platform
- 1.45 platform
- Glazier kit (for platform with swinging gate)
