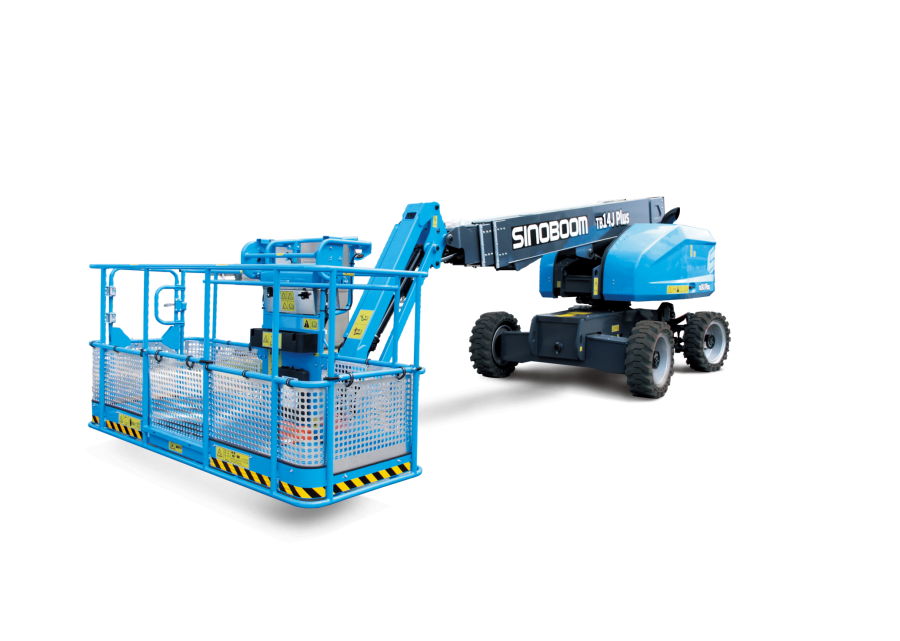

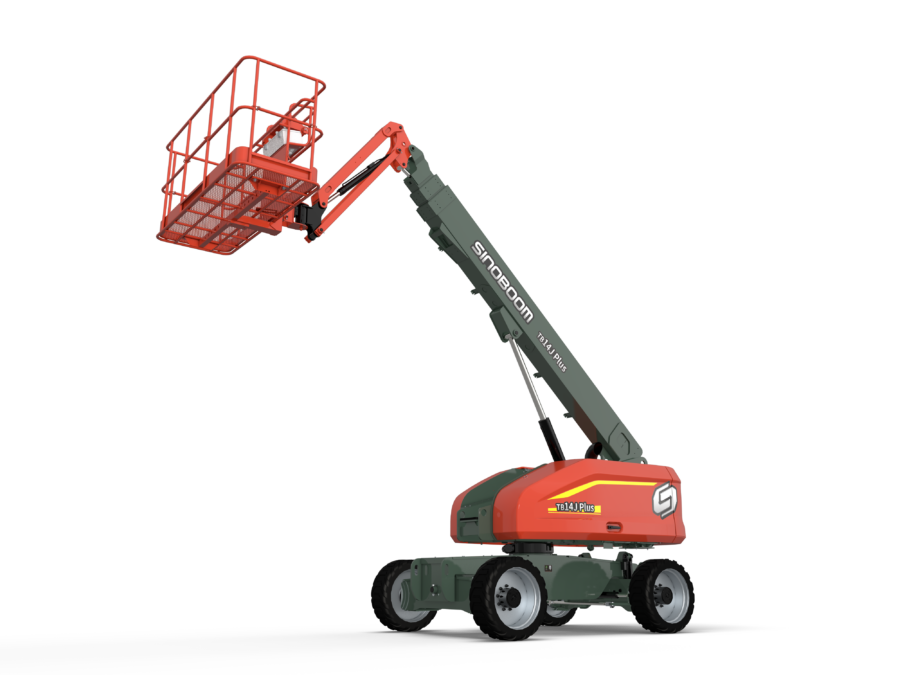

Sinoboom 16.1M 7,300kg Diesel Rough Terrain Telescopic Boom Lift
With a maximum working height of 16.1M this diesel-powered Sinoboom Telescopic Boom has extra basket capacity of up to 454kg (restricted) weight and machine weight of 7300kg
The TB14J PLUS offers an impressive maximum working height of 16.1 meters, enabling operators to reach high and difficult areas with ease. With a maximum horizontal outreach of up to 10.9 meters, it provides extensive lateral access, making it ideal for tasks that require significant horizontal reach.
Equipped with a reliable diesel engine,it delivers robust power and performance, ensuring consistent operation in demanding environments.
The four-wheel-drive capability enhances maneuverability and traction, allowing the lift to navigate rough terrains and challenging job sites effectively. A maximum restricted weight of up to 454kg provides flexibility of additional people and tools where required.
Ideal for construction sites and installations at height, installing and maintaining telecommunications equipment, facility management, setting up events, treecare and landscaping.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.
Specifications
Weight | 7300kg |
Working Height | 16.1M |
Platform Capacity (Restricted / Unrestricted) | 454 kg / 340kg / 250kg |
Power | Yanmar 3TNV80F-NXDSI 18.4 kW / Kubota D1105-E4B-EU-X1 18.5 kW |
Horizontal Reach max (Restricted / Unrestricted) | 9.1M / 10.0M / 10.9M |
Features
- The three-section boom design benefits machine transport due to compact length of only 5.88m
- Extra capacity of up to 454kg at restricted height and reach
- Excellent rough terrain performance with active oscillating function with highs stability and work efficiency
- Smooth starting and stopping with 3 joysticks for full-proportional contols
- Max Working Height 16.1 m
- Max Platform Height 14.1 m
- Max Horizontal Reach (restricted / unrestricted) 9.1M / 10.0M / 10.9M
- Length-Stowed 7.99 m
- Width-Stowed 2.3 m
- Height-Stowed 2.49 m
- Wheelbase 2.3 m
- Ground Clearance 0.37m
- Platform Size (L×W×H) 2.44 m×0.91 m×1.1 m
- Capacity (Restricted / Unrestricted) 454 kg / 340kg / 250kg
- Max Platform Occupants 3 Persons / 2 Persons
- Drive Speed (Stowed) 0~4.8 km/h
- Drive Speed (Raised) 0~0.8 km/h
- Gradeability 40%
- Turntable Rotation 360o Continuous
- Platform Rotation 160o
- Tilt Rating 5°
- Turning Radius (Inside/Outside) 1.82 m/4.78 m
- Turntable tail swing 0.98m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 33x12D610/foam filled
- Drive × Steer 4WD×2WS
- Hydraulic Tank Capacity 120L
- Yanmar 3TNV80F-NXDSi 18.4 kW / Kubota D1105-E4B-EU-X1 18.5 kW
- Fuel Tank Capacity 100L
- System Voltage 12V DC
- 4 WD × 2 WS
- Hydraulic Platform Levelling
- Proportional control with 3 joysticks
- Tilt protection system
- Flashing beacon
- Solid Non-marking tyres
- 7-in display screen
- Automotive-grade sleeves for all pipes
- Max tilt rating to 5o
- White noise alarm
- Secondary guarding device
- Telematics-ready connector
- Battery isolator
- Fault diagnosis system
- Active oscillating function
- Footswitch
- AC power to platform
- 2.44 m platform with swinging gate
- Weighing system
- Half mesh (for platform swinging gate)
- Belt-driven generator
Options & Accessories
- Platform work light
- 1.83 m work platform
- 1.45 platform
- Glazier kit (for platform with swinging gate)
