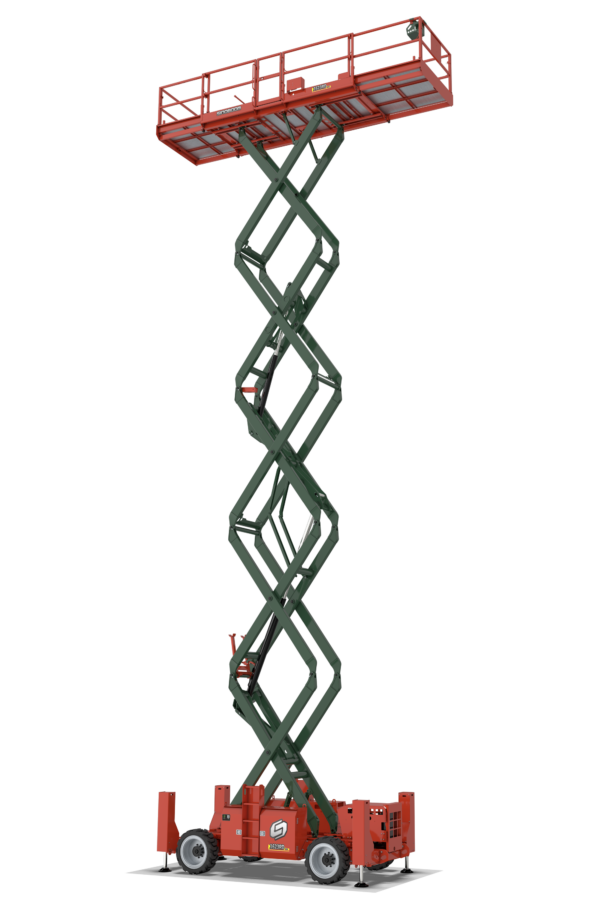

Sinoboom 18.2M 8,780kg Diesel Rough Terrain Scissor Lift
With a massive 680kg / 7 person lifting capacity and maximum working height of 18.2M, this Sinoboom diesel-powered rough terrain scissor lift weighs 9250kg
With a huge 7 person / 680kg capacity, the Sinoboom 1623RD diesel scissor lift has superior performance, durability, and efficiency for tackling heavy-duty tasks in challenging outdoor environments. Designed to operate on rough terrains, this robust scissor lift is equipped with advanced features that enhance safety and productivity.
With a working height of 18.2M, this EWP ensures there is ample space for workers and equipment with 4WD for enhanced mobility and performance on steep and rugged terrain with a maximum gradeability of 40%! Hydraulic outriggers provide additional stability reducing the risk of accidents. Ideal for constructions sites, industrial applications, landscaping and arboriculture, the energy sector as well as mining and quarry with zero-emissions.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine on the job in great working condition.
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.
Specifications
| Weight | 8780kg |
| Working Height | 18.2M |
| Platform Capacity | 680kg |
| Power | Yanmar 4TNV88-BDFLTC 34.5kW |
Features
- Powerful platform capacity for unprecedented efficiency
- Two-way extendable platform, spacious working platform
- Wide-angle tilt, one-click outrigger levelling
- Stable movement, copes well with potholed ground
- Integrated pipeline assembly, convenient for troubleshooting
- Double-door design for easy maintenance, spacious area for maintenance
- Drawer-type engine compartment, easy maintenance
- Max Working Height 18.2 m
- A Max Platform Height 16.2 m
- B Max Horizontal Reach 1.5 m/1.2 m
- C Length-Stowed (With/Without outriggers) 4.88 m
- D Width-Stowed 2.28 m
- E Height-Stowed (Rails Folded) 2.44 m
- E Height-Stowed (Rails Unfolded) 3.21 m
- F Wheelbase 2.84 m
- Ground Clearance 0.36 m
- Platform Size (L×W×H)6.5 m Platform 3.96 m×1.82 m×1.1 m
- Platform Size (L×W×H)7.4 m Platform 4.84 m×1.82 m×1.1 m
- Capacity 680 kg
- Extension Platform Capacity 227 kg
- Max Platform Occupants (Indoor/Outdoor) 4 Persons/4 Persons
- Drive Speed (Stowed) 0～6.1 km/h
- Drive Speed (Raised) 0～1.1 km/h
- Lift Time (Unloaded) 70 s～90 s
- Lower Time (Unloaded) 45 s～55 s
- Gradeability 40%
- Tilt Rating (Front-to-back) 3°
- Tilt Rating (Side-to-side, outriggers retracted/deployed) 2°/0.8°
- Max Outrigger Levelling (Front-to-back) 7°
- Max Outrigger Levelling (Side-to-side) 12°
- Turning Radius (Inside/Outside) 2.2 m/5.3 m (7’2.6″/17’4.7″)
- Tire Spec/Type 315/55D20/foam-filled
- Drive × Steer 4WD×2WS
- Engine Yanmar 4TNV88-BDFLTC 34.5kW（China 3）
- Hydraulic Tank Capacity 140L
- Fuel Tank Capacity 110L
- Battery 12 V，110 Ah
- System Voltage 12 VDC
- 4 WD × 2 WS
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency lowering system
- Emergency stop
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track unit connector
- Overload sensing system
- Oscillating axle
- Fault diagnosis system
- White noise alarm
- Dual extension deck
- Pipe rack ready
Options & Accessories
- AC power to platform
- Platform work light
- Battery isolator
- EQSS/Protector
- Pipe racks
