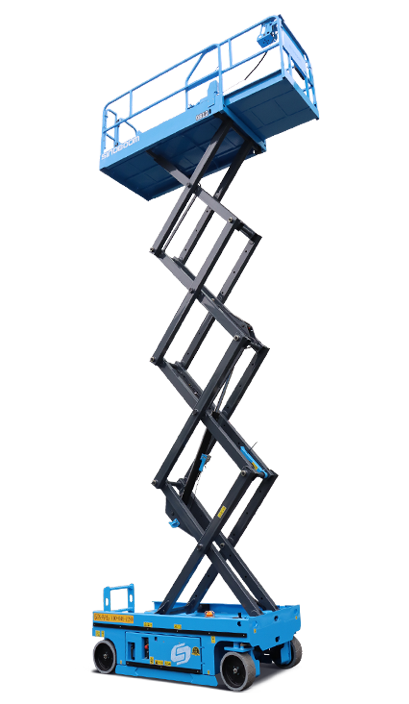

Sinoboom 10.1M 2,715kg Extra Capacity Electric Scissor Lift
With a maximum working height of 10.1M this electric Sinoboom scissor lift has EXTRA CAPACITY for occupants and tools with a weight of 2715kg
This scissor lift offers a highly efficient electric drive system that provides a smooth and quiet operation, making it suitable for outdoor and indoor use. With a maximum working height indoors and outdoors of 10.1M, the Sinoboom 0812E Scissor Lift offers extra capacity of 450kg for two occupants and tools. The energy-efficient design ensures longer operation times between charges, reducing downtime and increasing productivity. The precise and responsive controls enhance safety and ease of operation with the extendable platform giving additional reach.
Ideal for construction, the 0812E can be used for electrical installations or plumbing as well as maintenance and repair tasks in commercial buildings, facilities or retail areas; facilitates event set up and dismantling of stages, lighting rigs in event spaces and exhibition halls.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine on the job in great working condition..
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.
Specifications
| Weight | 2715kg |
| Working Height | 10.1M |
| Platform Capacity | 450kg |
| Power | Electric 24 V DC / 3.3kW |
Features
- Higher work efficiency
- Environmental protection, zero emissions
- The short design of sliding rail makes debris easy to clean
- Rapid, convenient transport with two-way forklift slot
- Lower cost of ownership with highly versatile parts
- New, wide scissor design, for a more stable working-at-height experience
- Bumper rail and indented sliding rail designed for anti-scratch
- Max Working Height (Indoor/Outdoor) 10.1M
- Max Platform Height (Indoor/Outdoor) 8.1M
- Horizontal Platform Extension 0.9M
- Length-Stowed 2.45M
- Width-Stowed 1.17M
- Height-Stowed (Rails Folded) 1.73M
- Height-Stowed (Rails Unfolded) 2.36M
- Wheelbase 1.88M
- Ground Clearance (Pothole Guard Stowed) 0.1M
- Ground Clearance (Pothole Guard Deployed) 0.025M
- Platform Size (L×W×H) 2.3M×1.15M×1.1M
- Platform Capacity 450kg
- Extension Platform Capacity 120kg
- Max Platform Occupants (Indoor/Outdoor) 2 Persons
- Drive Speed (Stowed) 0～4 km/h
- Drive Speed (Raised) 0～0.8 km/h
- Lift Time (Unloaded) 30 s～38 s
- Lower Time (Unloaded) 35 s～40 s
- Gradeability 25%
- Allowable Inclination (front-to-back/side-to-side) 3o / 1.5°
- Turning Radius (Inside/Outside) 0.0M / 2.35M
- Tyre Size/Type 380 x 125mm / solid
- Drive × Steer 2WD×2WS
- Power Source 24V / 3.3kW
- Drive Motor 24V DC / 0.85 kW / 24V AC/0.7kW
- Hydraulic Tank Capacity 15L
- Battery 24 V, 220 Ah (lead acid battery)
- Charger (Input/Output) 100-240V AC / 30A
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency stop
- Emergency lowering system
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track unit connector
- Overload sensing system
- Fault diagnosis system
- White noise alarm
- Drivable at full height
- Maintenance-free battery
- Automatic pothole protection
- Bumper rails
- White noise alarm
Options & Accessories
- RCBO
- AC power to platform
- Battery isolator
- AC Drive Motor
- Platform working light
- Lithium battery
