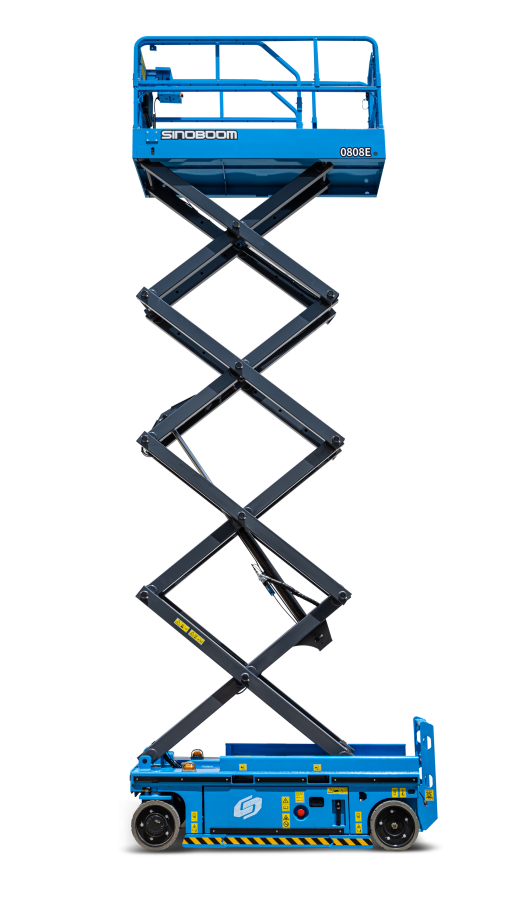

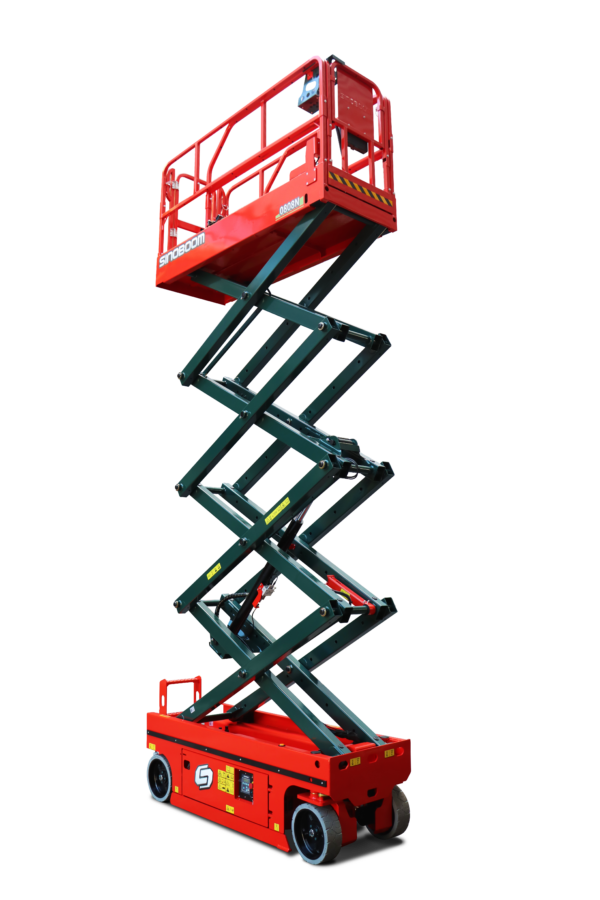

Sinoboom 10.1M 2,265kg Electric Scissor Lift
With a maximum working height of 10.1M this Sinoboom scissor lift is suitable for both indoor and outdoor use with a weight of 2265kg
This scissor lift gives great working at height access with the ability to still fit through a narrow doorway. With a maximum working height indoors and outdoors of 10.1M, the Sinoboom 0808E Scissor Lift offers exceptional versatility, reliability, and efficiency, making it a top choice for various industries. This aerial work platform stands out due to its durable construction and advanced features, ensuring precision and safety at height. With a slim width of just 0.83 meters, the 0808E easily navigates tight spaces and narrow aisles. It boasts a load capacity of up to 250 kg, supporting multiple operators and their tools.
Ideal for warehousing or outdoor tasks requiring great stability and extra access at height.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine on the job in great working condition.
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.
Specifications
| Weight | 2265kg |
| Working Height | Indoor 10.1M / Outdoor 8.0M |
| Platform Capacity | 250kg |
| Power | Electric 24 V / 3.3kW |
Features
- Higher work efficiency
- Environmental protection, zero emissions
- The short design of sliding rail makes debris easy to clean
- Rapid, convenient transport with two-way forklift slot
- Lower cost of ownership with highly versatile parts
- New, wide scissor design, for a more stable working-at-height experience
- Bumper rail and indented sliding rail designed for anti-scratch
- Max Working Height (Indoor/Outdoor) 10.1M / 8.0M
- Max Platform Height (Indoor/Outdoor) 8.1M / 6.0M
- Horizontal Platform Extension 0.9M
- Length-Stowed 2.46M
- Width-Stowed 0.83M
- Height-Stowed (Rails Folded) 1.96M
- Height-Stowed (Rails Unfolded) 2.36M
- Wheelbase 1.88M
- Ground Clearance (Pothole Guard Stowed) 0.1M
- Ground Clearance (Pothole Guard Deployed) 0.025M
- Platform Size (L×W×H) 2.3M×0.8M×1.1M
- Platform Capacity 250kg
- Extension Platform Capacity 120kg
- Max Platform Occupants (Indoor/Outdoor) 2 Persons/1 Persons
- Drive Speed (Stowed) 0～4 km/h
- Drive Speed (Raised) 0～0.8 km/h
- Lift Time (Unloaded) 30 s～35 s
- Lower Time (Unloaded) 34 s～39 s
- Gradeability 25%
- Allowable Inclination (front-to-back/side-to-side) 3o / 1.5°
- Turning Radius (Inside/Outside) 0.0M / 2.1M
- Tyre Size/Type 380 x 125mm / solid
- Drive × Steer 2WD×2WS
- Power Source 24V / 3.3kW
- Drive Motor 24V DC / 0.6 kW / 24VAC/0.7kW
- Hydraulic Tank Capacity 15L
- Battery 24 V, 220 Ah (lead acid battery)
- Charger (Input/Output) 100-240V AC / 30A
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency stop
- Emergency lowering system
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track unit connector
- Overload sensing system
- Fault diagnosis system
- White noise alarm
- Drivable at full height
- Maintenance-free battery
- Automatic pothole protection
- Bumper rails
- White noise alarm
Options & Accessories
- RCBO
- AC power to platform
- Battery isolator
- EQSS/Protector
- AC Drive Motor
