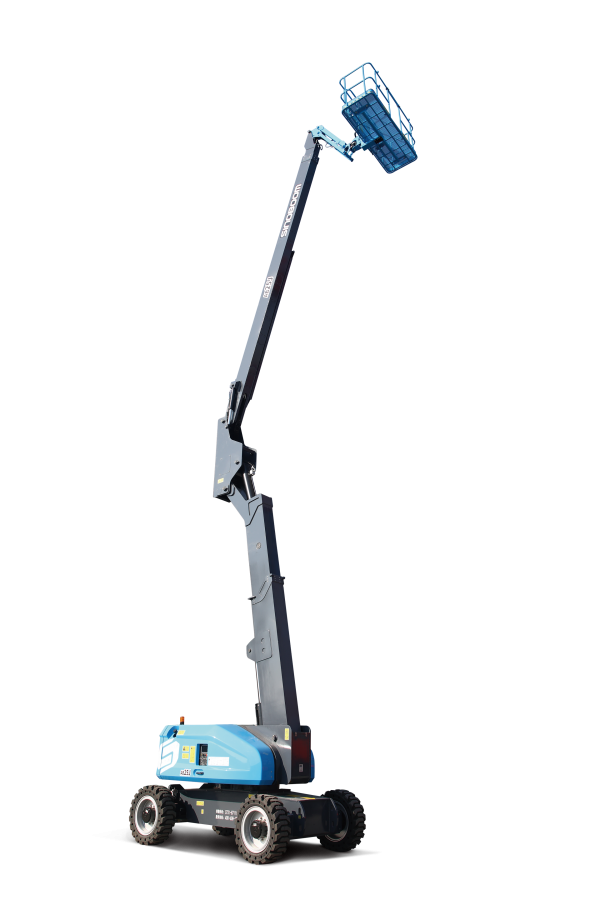

Sinoboom 26.6M 17150kg Diesel Articulating Boom Lift

With a maximum working height of 26.6M and a horizontal reach of up to 16.1M this diesel-powered Sinoboom articulated boom lift has a capacity of up to 230kg and a machine weight of 17150kg

Sinoboom
AB25J

This reliable, rough terrain, diesel-powered articulated lift is equipped with hydraulic leveling. The secondary boom extension and lift are hydraulically interlocked, ensuring smooth operation. It boasts a maximum platform capacity of 230kg and a working height of 26.6 meters, accommodating up to two people. With a gradability of up to 30% in 2WD and 40% in 4WD, its patented anti-skid control offers robust off-road capability. Additionally, it has a horizontal reach of up to 16.1 meters.
The turntable provides 360-degree continuous rotation, and the working platform can be lifted and lowered to any position without needing to operate the secondary boom. The secure folding arm, luffing operation with hydraulic interlocking, and hydraulic-connection body leveling enhance operational efficiency. This lift is ideal for construction sites, such as installing windows, roofing, and exterior finishing, as well as maintenance or repair work on multi-story buildings. It is also useful for industrial facilities, infrastructure projects, utility work, agricultural applications, and remote locations where electric power may not be available.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.

Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.

Enquire about this product ›
Complete with After Sales Support powered by YR Connect

Specifications

Weight17150kg
Working Height26.6M
Platform Capacity230kg
PowerCummins QSF2.8t3TC72 54kW
Horizontal Reach max16.1M
Up & over Clearance9.4M

Features

  • Industry leading 7” display screed for faults and status information reducing service technical assistance and remote guidance.
  • ‘Up right’ with hydraulic levelling, the secondary boom extension and lift are hydraulically linked
  • 3 joysticks with variable proportional control, accuracy in reaching the operation target
  • The working platform can be lifted and lowered to any position without the need to operate the secondary boom
  • Max Working Height 26.6 m
  • Max Platform Height 24.6 m
  • Max Horizontal Reach 16.1 m
  • Max Up and Over Clearance 9.4 m
  • Length-Stowed 11.51 m
  • Width-Stowed 2.49 m
  • Height-Stowed 3.2 m
  • Wheelbase 3.05 m
  • Ground Clearance 0.39m
  • Platform Size (L×W×H) 2.44 m×0.91 m×1.1 m
  • Capacity 230 kg
  • Max Platform Occupants 2 Persons
  • Drive Speed (Stowed) 0～4.4 km/h
  • Drive Speed (Raised) 0～1.1 km/h
  • Gradeability 30% (2WD) 40% (4WD)
  • Turntable Rotation 360o continuous
  • Platform Rotation 160o
  • Tilt Rating 5o
  • Turning Radius (Inside/Outside) 3.0 m/6.33 m
  • Turntable tail swing 1.0 m
  • Max Allowable Side Force 400 N
  • Max allowable wind speed 12.5 m/s
  • Tire Spec/Type 385/65-22.5/foam filled
  • Drive × Steer 4WD (2WD)×2WS
  • Hydraulic Tank Capacity 180L
  • Fuel Tank Capacity 140L
  • Cummins QSF2.8t3TC72 54kW
  • System Voltage 12V DC
  • 4 WD (2WD) × 2 WS
  • Hydraulic Platform Levelling
  • Proportional control with 3 joysticks
  • Tilt protection system
  • Flashing beacon
  • 7-in display screen
  • Automotive-grade sleeves for all pipes
  • White noise alarm
  • Secondary guarding device
  • Telematics-ready connector
  • Oscillating function
  • Half mesh (for platform with swinging gate)
  • Weighing system
  • Non-marking tyres
  • 2.44 m platform
  • Battery isolator
  • Fault diagnostic system
  • 4-wheel brake

Options & Accessories

  • AC power to platform
  • Platform work light
  • Glazier kit (for platform with swinging gate)
  • 1.45m platform
  • 1.83 m platform with swinging gate
