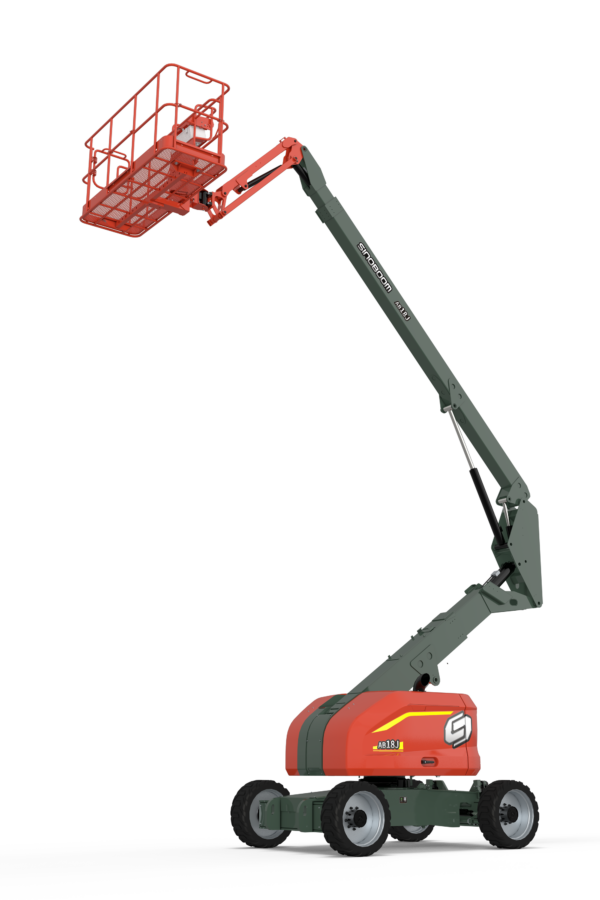

Sinoboom 20.3M 10,700kg Diesel Articulating Boom Lift
Maximum working height of 20.3M - horizontal reach of up to 12.2M with a capacity of up to 250kg
Rough terrain, diesel-powered articulated jib has a maximum platform capacity of 250kg, a gradability of up 40% at 4WD and patented anti-skid control it also has a horizontal reach of up to 12.2M.
The turntable is 360 degrees continuous and the working platform can be lifted and lowered to any position without the need to operate the secondary boom. Ideal for construction sites such as installing windows, roofing and exterior finising as well as maintenance or repair work on multi-story buildings. Useful for industrial facilities, infrastructure projects, utility work and agricultural applications and remote locations where electric power might not be available.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Specifications
| Weight | 10700kg |
| Working Height | 20.3M |
| Platform Capacity | 250kg |
| Power | Cummins QSF22.8t3NA60 43kW |
| Horizontal Reach max | 12.2M |
| Up & over Clearance | 7.8M |
Features
- Industry leading 7” display screed for faults and status information reducing service technical assistance and remote guidance.
- ‘Up right’ with hydraulic levelling, the secondary boom extension and lift are hydraulically linked
- 3 joysticks with variable proportional control, accuracy in reaching the operation target
- The working platform can be lifted and lowered to any position without the need to operate the secondary boom
- Max Working Height 20.3 m
- Max Platform Height 18.3 m
- Max Horizontal Reach 12.2 m
- Max Up and Over Clearance 7.8 m
- Length-Stowed 8.6 m
- Width-Stowed 2.28 m
- Height-Stowed 2.56 m
- Wheelbase 2.24 m
- Ground Clearance 0.23m
- Platform Size (L×W×H) 1.83 m×0.85 m×1.1 m
- Capacity 250 kg
- Max Platform Occupants 2 Persons
- Drive Speed (Stowed) 0～5 km/h
- Drive Speed (Raised) 0～1.1 km/h
- Gradeability 40%
- Turntable Rotation 360o continuous
- Platform Rotation 160o
- Tilt Rating 5o
- Turning Radius (Inside/Outside) 3.48 m/6.29 m
- Turntable tail swing 0.2m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 33 x 12D610/foam filled
- Drive × Steer 4WD×2WS
- Hydraulic Tank Capacity 120L
- Fuel Tank Capacity 110L
- Cummins QSF22.8t3NA60 43kW
- System Voltage 12V DC
- 4 WD × 2 WS
- Hydraulic Platform Levelling
- Proportional control with 3 joysticks
- Tilt protection system
- Flashing beacon
- 7-in display screen
- Automotive-grade sleeves for all pipes
- White noise alarm
- Secondary guarding device
- Telematics-ready connector
- Oscillating function
- Half mesh
- Weighing system
- Non-marking tyres
- 1.83m platform
- Battery isolator
- Fault diagnostic system
- 4-wheel brake
Options & Accessories
- AC power to platform
- Platform work light
- Glazier kit (for platform with swinging gate)
- 1.45m platform
- 2.44 m platform with swinging gate
Each elevated work platform comes with an impressive factory warranty and a comprehensive After Sales Support programme supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
