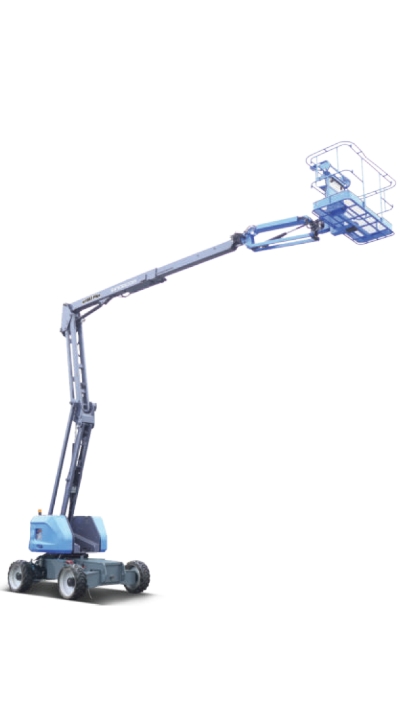

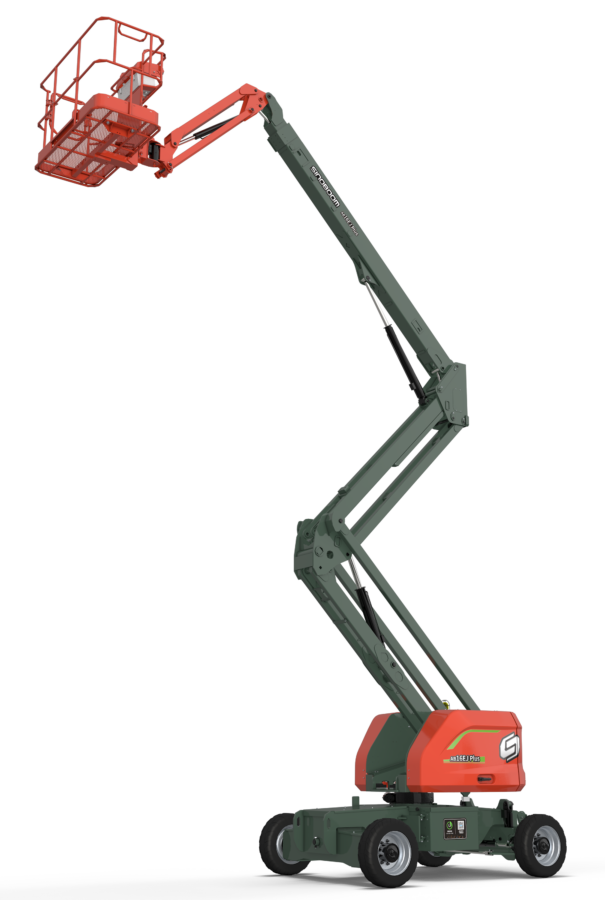

Sinoboom 17.8M 7,750kg Electric Rough Terrain Articulating Boom Lift
Maximum working height of 17.8M, horizontal reach of up to 9M with extra capacity of up to 454kg
This electric articulated lift extra capacity with rough terrain capability for smooth off-road and quiet indoor and outdoor operation. The 4WD, 40 % gradability when combined with standard oscilating function provides excellent reach and an extra basket capacity of up to 454kg.
With a maximum horizontal reach of up to 9M, it is ideal for constructions sites, warehouses, distribution centres, maintenance and inspection as well as public buildings such as hospitals, schools, airports and shopping malls due to its quiet operation and zero emissions. It is useful for greenhouses and agricultural settings.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. A product demo is easily booked with one of our access specialists. Genuine spare parts are readily available and our specialist technicians can help keep your machine on the job in great working condition.
Specifications
| Weight | 7750kg |
| Working Height | 17.8M |
| Platform Capacity | 250kg / 340kg / 454kg |
| Power | Electric 48V 390 Ah (Lead acid battery) |
| Horizontal Reach max | 9M / 8.1M / 7M |
| Up & Over Clearance | 7.9M |
Features
- Smooth off-road and quiet indoor and outdoor operation
- 4WD, 40% gradeability
- Standard active oscillating function, excellent terrain ability
- Auxiliary power system, electrical emergency lowering
- Rexroth controller complies with ISO13849 standard
- Both main boom and secondary boom are equipped with dual channel angle sensors
- Triple load capacity of 250kg / 340kg / 454kg max platform occupants of up to 3 persons
- Standard AGM maintenance free battery minimises maintenance costs as well as providing long working endurance
- AC brushless lift motor, maintenance free
- Max Working Height 17.8 m
- Max Platform Height 15.8 m
- Max Horizontal Reach 9M / 8.1M / 7M
- Max Up and Over Clearance 7.9 m
- Length-Stowed 7.6 m
- Width-Stowed 2.3 m
- Height-Stowed 2.25 m
- Wheelbase 2.3 m
- Ground Clearance 0.37m
- Platform Size (L×W×H) 1.83 m×0.85 m×1.1 m
- Max Platform Capacity (Unrestricted/Restricted/Restricted) 250kg / 340kg / 454kg
- Max Platform Occupants (Unrestricted/Restricted) 2 Persons / 3 persons
- Drive Speed (Stowed) 0～5.5 km/h
- Drive Speed (Raised) 0～1.1 km/h
- Gradeability 40%
- Turntable Rotation 355o non-continuous
- Platform Rotation 180o
- Tilt Rating 5°
- Turning Radius (Inside/Outside) 1.8 m/4.78 m
- Turntable tail swing 0.3m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 33 x 12 D610 / foam filled
- Drive × Steer 4WD×2WS
- Hydraulic Tank Capacity 64L
- Battery 48 V，390 Ah (lead acid battery)
- System Voltage 12V DC
- 4 WD × 2 WS
- Hydraulic Platform Levelling
- Proportional control
- Active oscillating function
- Foam filled non-marking tyres
- 5-in display screen
- Automotive-grade sleeves for all pipes
- Emergency lowering system
- Fault diagnosis system
- Tilt protection system
- Flashing beacon
- Horn and buzzer
- Footswitch
- 1.83m platform
- Weighing system
- Emergency stop system
- Manual storage box
Options & Accessories
- AC power to platform
- Platform work light
- 1.83 platform with swing gate
- 1.45m platform
- Glazier kit (for platform with swinging gate)
Each elevated work platform comes with an impressive factory warranty and a comprehensive After Sales Support programme supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
