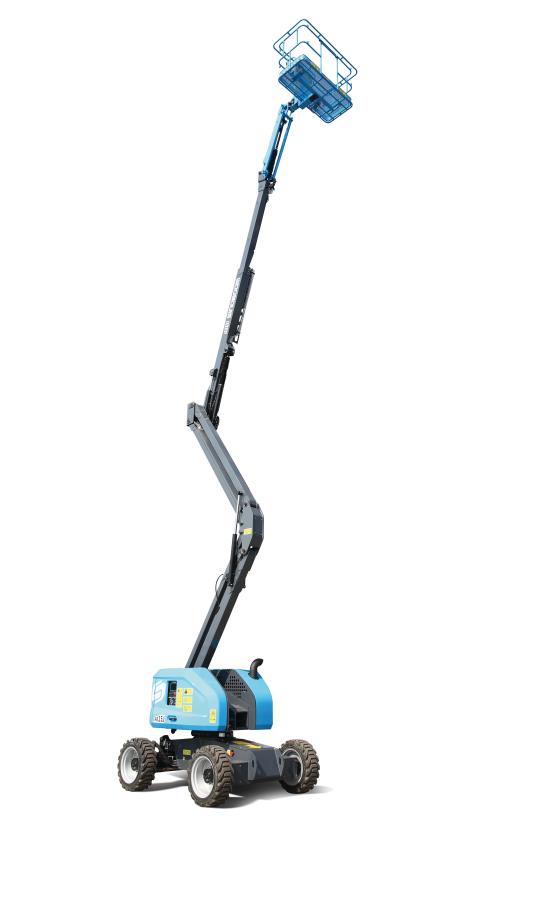

Sinoboom 16.7M 7080kg Diesel Articulating Boom Lift

With a maximum working height of 16.7M and a horizontal reach of up to 8.5M this diesel Sinoboom articulated boom lift has a capacity of up to 250kg and a machine weight of 7080kg

Sinoboom
AB15J

This zero tail sweep articulated job has a maximum platform capacity of 250kg – plenty of room for up to 2 people and tools. With a gradability of up to 30% at 2WD and 40% at 4WD, its horizontal reach of up to 8.5M makes it versatile enabling operators to access hard-to-reach places.
This zero tail sweep articulated job with a narrow width has a maximum platform capacity of 250kg – plenty of room for up to 2 people and tools. With a gradability of up to 30% at 2WD and 40% at 4WD, its horizontal reach of up to 8.5M makes it versatile enabling operators to access hard-to-reach places.
Ideal for construction sites such as installing windows, roofing and exterior finising as well as maintenance or repair work on multi-story buildings. Useful for industrial facilities, infrastructure projects, utility work and agricultural applications and remote locations where electric power might not be available.


Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.

Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.

Enquire about this product ›
Complete with After Sales Support powered by YR Connect

Specifications

Weight7080kg
Working Height16.7M
Platform Capacity250kg
PowerDeutz D2011L31 36.3 kW
Horizontal Reach max8.5M
Up & over Clearance7.2M

Features

  • Narrow width with zero tail swing
  • The working platform can be lifted and lowered to any position without the need to operate a second arm
  • The simple linkage mechanism design and hydraulic levelling are reliable during operation
  • 3 joysticks with variable proportional control, accuracy in reaching the operation target
  • Max Working Height 16.7 m
  • Max Platform Height 14.7 m
  • Max Horizontal Reach 8.5 m
  • Max Up and Over Clearance 7.2m
  • Length-Stowed 7.35 m
  • Width-Stowed 2.26 m
  • Height-Stowed 2.22 m
  • Wheelbase 2.03 m
  • Ground Clearance 0.32m
  • Platform Size (L×W×H) 1.83 m×0.85 m×1.1 m
  • Capacity 250 kg
  • Max Platform Occupants 2 Persons
  • Drive Speed (Stowed) 0～5 km/h 4WD / 0～7 km/h 4WD
  • Drive Speed (Raised) 0～1.1 km/h
  • Gradeability 30% 2WD / 40% 4WD
  • Turntable Rotation 355o non-continuous
  • Platform Rotation 160o
  • Tilt Rating 5o
  • Turning Radius (Inside/Outside) 1.8 m/4.5 m
  • Turntable tail swing 0m
  • Max Allowable Side Force 400 N
  • Max allowable wind speed 12.5 m/s
  • Tire Spec/Type 315/55D20/foam filled
  • Drive × Steer 4WD×2WS
  • Hydraulic Tank Capacity 90L
  • Fuel Tank Capacity 55L
  • Deutz D2011L31 36.3 kW
  • System Voltage 12V DC
  • 4 WD × 2 WS
  • Hydraulic Platform Levelling
  • Proportional control with 3 joysticks
  • Tilt protection system
  • Flashing beacon
  • 7-in display screen
  • Automotive-grade sleeves for all pipes
  • White noise alarm
  • Secondary guarding device
  • Telematics-ready connector
  • Emergency lowering system
  • Oscillating function
  • Half mesh (for platform swing gate)
  • Weighing system
  • Non-marking tyres
  • 1.83m platform
  • Battery isolator
  • 160 deegree Platform rotation
  • Max tilt to 5 degrees
  • 4-wheel brake

Options & Accessories

  • AC power to platform
  • Platform work light
  • Glazier kit (for platform with swinging gate)
  • 1.45m platform
