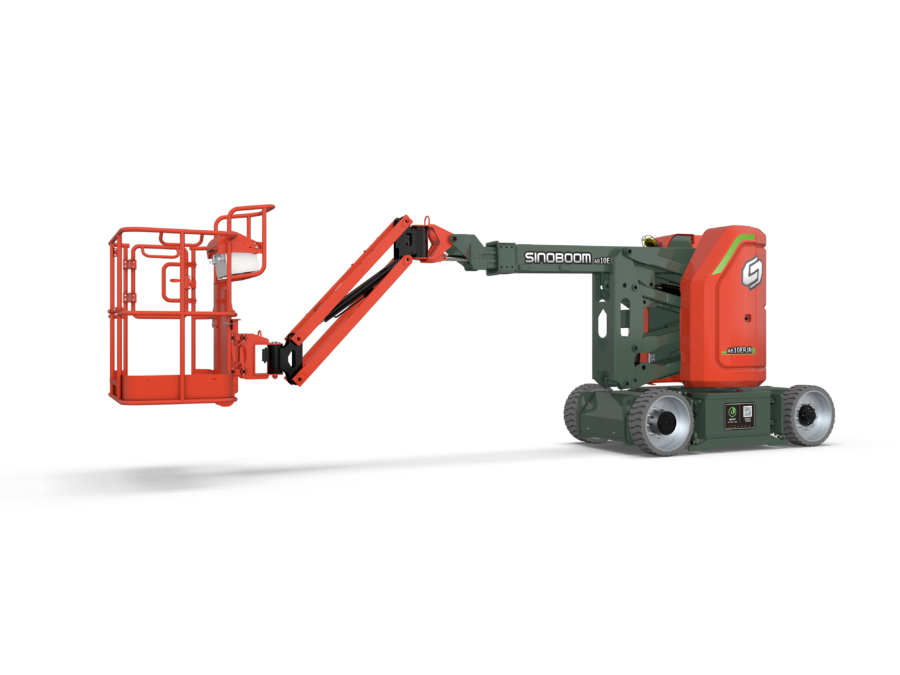

Sinoboom 11.62M 6,760kg Electric Articulating Boom Lift
Sinoboom AB10ERJN electric, zero tailswing articulated boom lift with a working height of 11.62M and narrow 1.18M chassis has zero emissions
The Sinoboom electric articulated lift has zero emissions making it environmentaly friendly and suitable for indoor use. The electric motor operates quietly and so the low noise levels reduce noise polution making it ideal for noise-sensitive environments. With its compact size, robust construction, and innovative features, the AB10ERJN is the ideal choice for tasks that require precision and safety at height. With a width of only 1.18M meters, this moel allows for greater manoeuvrability in tight spaces, enabling access to difficult-to-reach places. With a load capacity of up to 230 kg, it can accommodate multiple operators.
Capable of reaching a maximum working height of 11.62M meters, it is perfect for a variety of indoor and outdoor tasks.
Ideal for reaching high areas in warehouses, factories and industrial plants including shopping malls, airports and larger facilities for repair and maintenance work. Used in construction, facilties management, event setop and maintenance as well as tree trimming, power line maintenance and street lighting repairs.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.
Specifications
| Weight | 6760kg |
| Working Height | 11.62M |
| Platform Capacity | 230kg |
| Power | Electric 48V 330 Ah (Lead acid battery) |
| Horizontal Reach max | 6.3M |
| Up & over Clearance | 4.63M |
Features
- Sinoboom family control system (Rextoth, ground and platform), compliant with ISO13849 PLd, safe and reliable
- Electric emergency operation on both ground and platform controller
- Excellent HMI experience
- With only 1.19M narrow chassis and 1.99M stowed height, zero tail swing, suitable for confined spaces
- Gravity lower technology and maintenance free battery, green and zero emissions
- Max Working Height 11.62 m
- Max Platform Height 9.62 m
- Max Horizontal Reach 6.3 m
- Max Up and Over Clearance 4.63M
- Length-Stowed 5.72 m
- Width-Stowed 1.19 m
- Height-Stowed 1.99 m
- Wheelbase 1.65 m
- Ground Clearance (Pothole Guard Stowed/Deployed) 0.09 m / 0.03m
- Platform Size (L×W×H) 1.15 m×0.76 m×1.1 m
- Capacity 230 kg
- Max Platform Occupants 2 Persons
- Drive Speed (Stowed) 0～5 km/h
- Drive Speed (Raised) 0～0.8 km/h
- Gradeability 35%
- Turntable Rotation 355o non-continuous
- Platform Rotation 180o
- Jib length 1.42 m
- Horizontal Jib Rotation 180o
- Vertical Jib Rotation 145o (up +73o / down +72o)
- Tilt Rating 3°
- Turning Radius (Inside/Outside) 1.7 m/3.25 m
- Turntable tail swing 0m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 22x7x17.75”/solid non-marking
- Drive × Steer 2WD×2WS
- Hydraulic Tank Capacity 20L
- Battery 48 V，330 Ah (lead acid battery)
- System Voltage 12 V DC
- 2 WD × 2 WS
- Hydraulic Platform Levelling
- Proportional control
- Manual storage box
- Tilt protection system
- Flashing beacon
- Solid Non-marking tyres
- 5-in display screen
- Automotive-grade sleeves for all pipes
- Max tilt rating to 3o
- White noise alarm
- Secondary guarding device
- Telematics-ready connector
- Emergency lowering system
- Overload sensing system
- Battery isolator
- Emergency stop system
- Fault diagnosis system
Options & Accessories
- AC power to platform
- Platform work light
