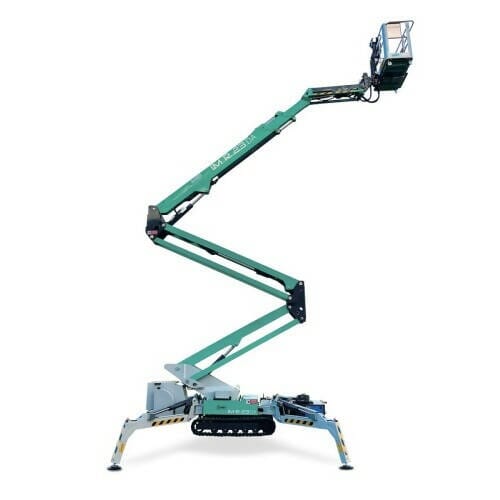

IMER 15M 2030kg Petrol-Powered Tracked Spider Lift
IMER R15 DA petrol-powered tracked spider lift has a working height of 15M and weight of 2030kg
The up and over capability of 7M allows this this unit to easily overcome obstacles at height. Hydraulically adjustable track widths ensure more stability and traction to move around the building site or rough terrain. The turret slewing 360o (not continuous) allows, together with the active job, an excellent positioning in the various work phases. Compactness of the job assembly hosts the load cell and basket rotation.
Ideal for working in and around the job site, indoors and outdoors and in tough terrain.
Specifications
| Weight: | 2030kg |
| Working Height: | 15M |
| Basket Capacity: | 230kg |
| Power: | Honda Petrol engine GX390 8.2kW / 3600rpm |
Features
- Platform height: 13.1M
- Side outreach: 7M @ 230kg
- Up and Over: 7M
- Turret slewing: 360o (not continuous)
- Basket dimensions: 1.4M x 0.75M x 1.10M
- Overall outrigger footprint: 2.92M x 3.08M
- Driving speed fixed/variable: 1.3km/h / 2.6km/h
- Gradeability: 30%
- Platform capacity: 230kg
- Electric motor: 230V / 2.2kW
- Petrol engine Honda GX390 8.2kW / 3600rpm
- Transport length (without basket): 4.40M (3.65M)
- Transport width (with extended tracks): 79M (1.10M)
- Stowed Height: 1.99M
- Weight: 2030kg
- Automatic outriggers levelling with electronic inclinometer
- Outrigger pads (Ø 200 mm)
- Emergency hand pump
- Cylinder holding valve
- Electronic hour meter
- Load cell on the basket
- Hydraulic Jib
- Rubber tracks
- Hydraulically adjustable tracks width
- Air / Water outlet in the platform
- 230V – 16 A outlet in the platform
- Removable wired control box (5 m cable)
- Hour meter
- Non-marking tracks
